211SACH

CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT

Peak heavy-duty line of two post lifts model 211SAC, 211SACH, 212C and 215C are specially designed for vehicle from car to truck, with heavy-duty steel construction.

offerte aanvragen

Kenmerken

  •  11,000 Lb. Capacity
  • Dual hydraulic direct-drived cylinders,designed and made on high standard,high quality oil seals for cylinder.
  •  3/8" aircraft quality cable is used for synchronization
  • Self-lubricating UHMW Polyethylene sliders and bronze bush
  • Single-point safety release
  • Clearfloor design, provide unobstructed floor space
  • Overhead safety shut-off device
  • Both Symmetric and Asymmetric arms configuration
  • Automatic arms restraints
  •  Adjustable height setting accommodate varying service ceiling heights
  • Stackable adapters 1.5”, 2.5”, 5”as standard

Specificaties

  • Model 211sach Clearfloor Direct-Drived
  • Lifting Capacity 5.0T (11.000lbs)
  • Lifting Time 57 Seconds

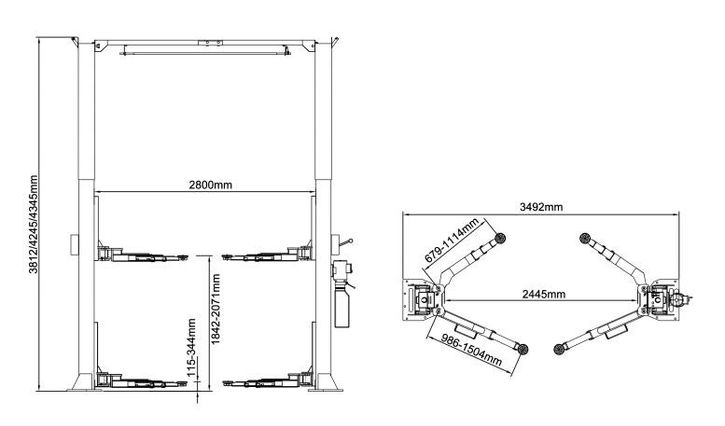

  • Lifting Height 1842 - 2071 mm (72 1/2"- 80 1/2")
  • Overall Height 3812/4245/4345mm (150"/167"1/8"171")
  • Overall Width 3492 mm (137 1/2")
  • Drive-thru Clearance 2445 mm (96 1/4")
  • Width Between Columns 2800mm (110 1/4")
  • Minimum Pad Height 115mm (4 1/2")
  • Gross Weight 885kg (1.951 lbs)
  • Motor 2.0/3.0 HP
  • QTY of Container 20 Units / 20'GP
  • Packing Dimension 2890 x 540 x 765 mm

Foto's
